# Paradigms

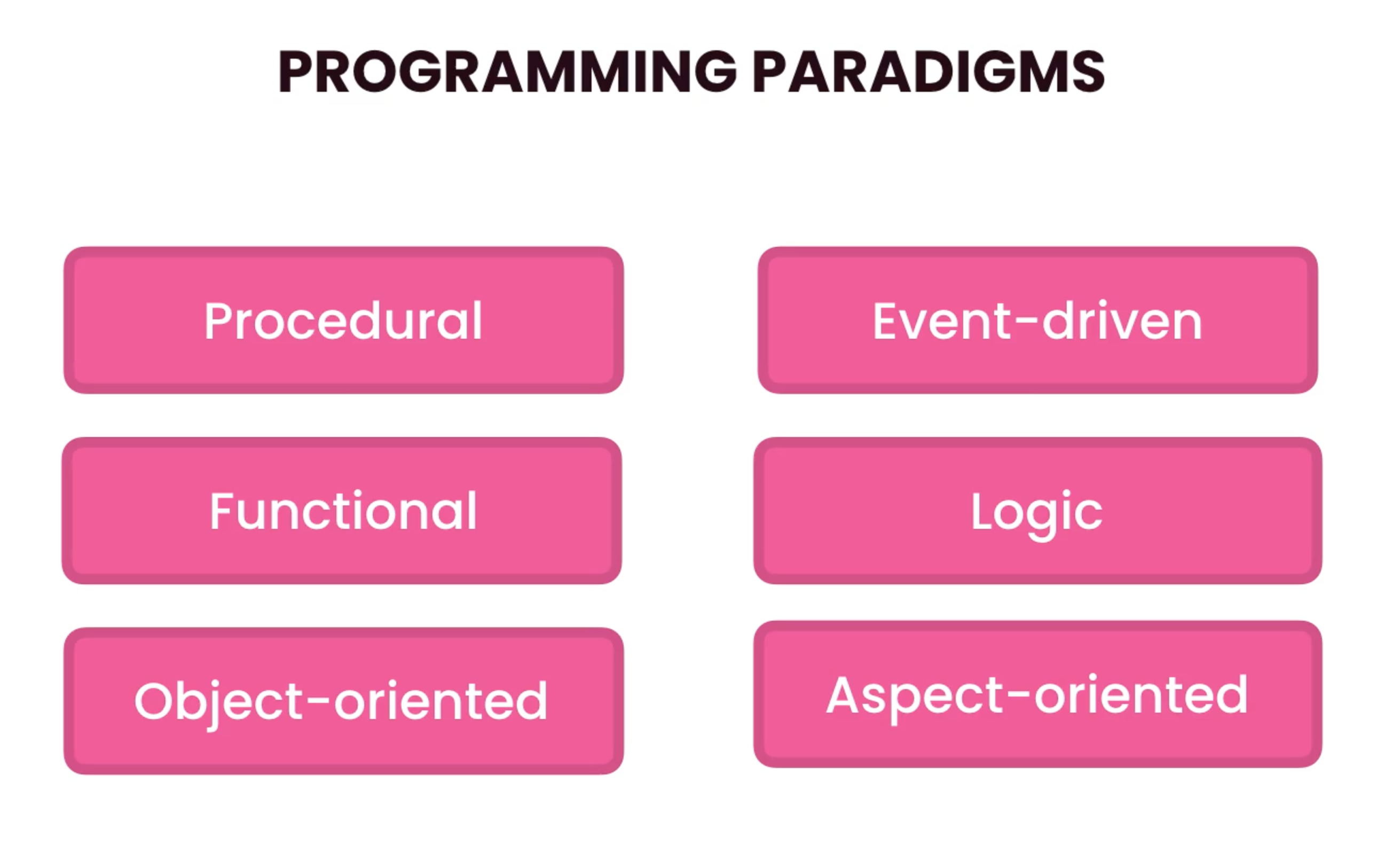

There are many paradigms

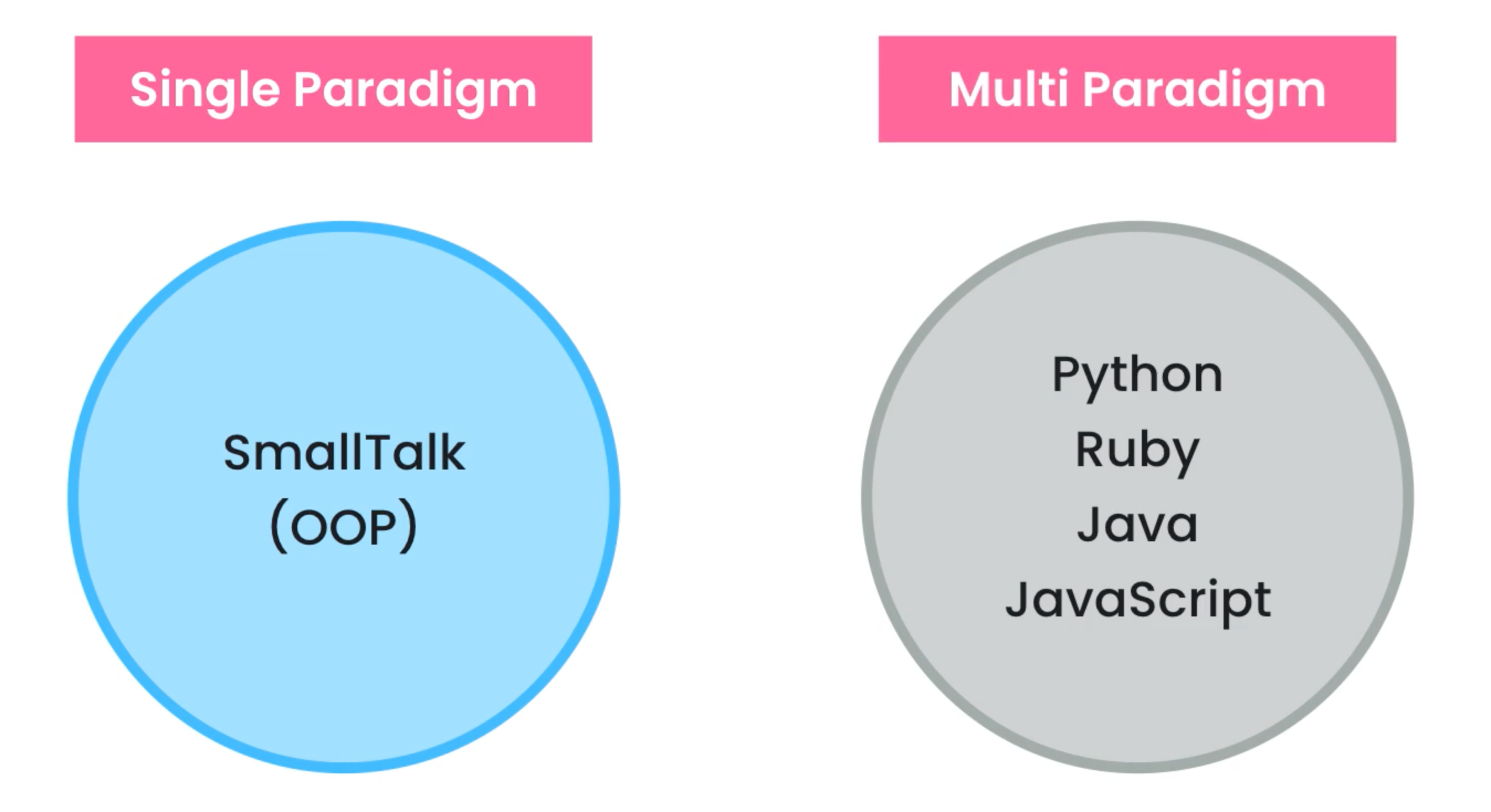

Different languages support different paradigms

In OOSD, everything is based on the concept of Object
Objects are units that contain
- Data (State)
- Methods (Behavior) (operation on the date)

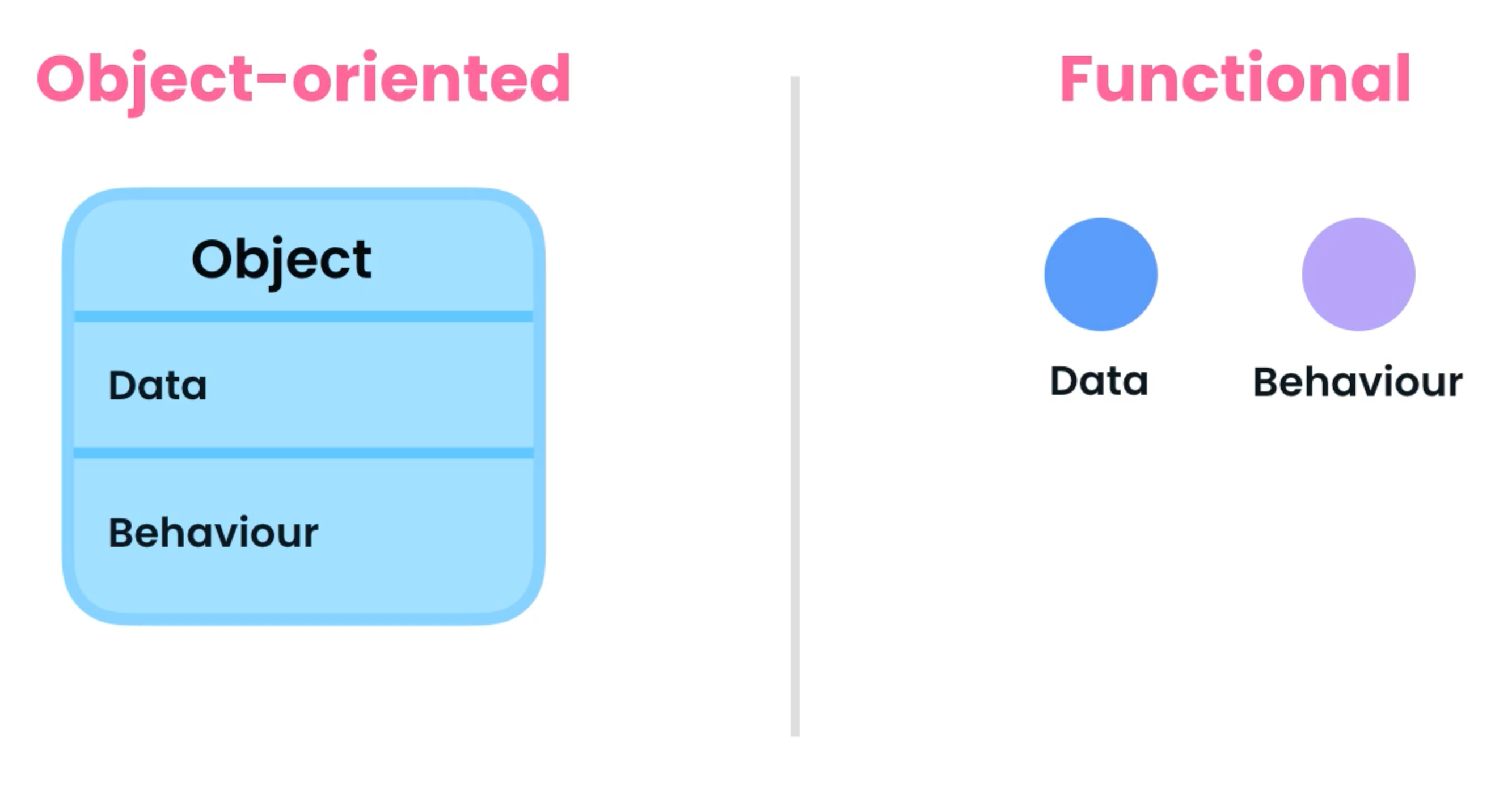

Object-oriented:
- Complex
- data and behavior are in a single object
Functional: keep them separate

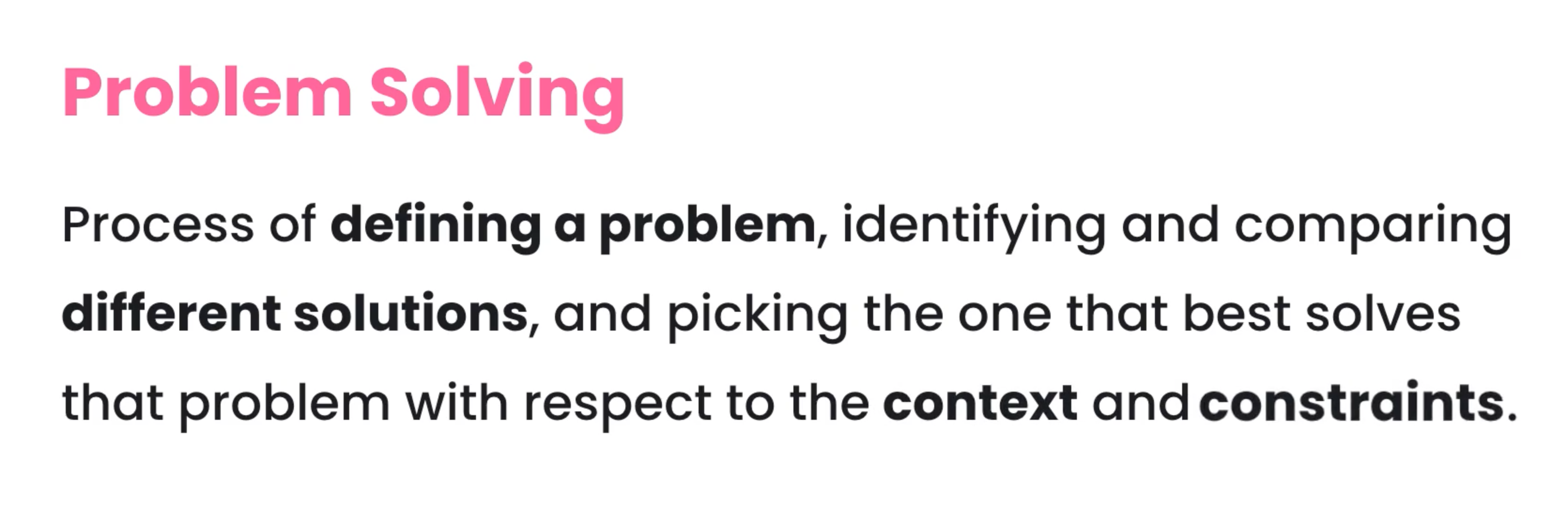

That is, it depends
It depends on the problem one is trying to solve
No paradigm works best in all situations
No such a thing as one size fits all

# Benefits of OOSD

Modular
- Reduced complexity
- Easier maintenance
- Code reuse
- Faster development

# Classes

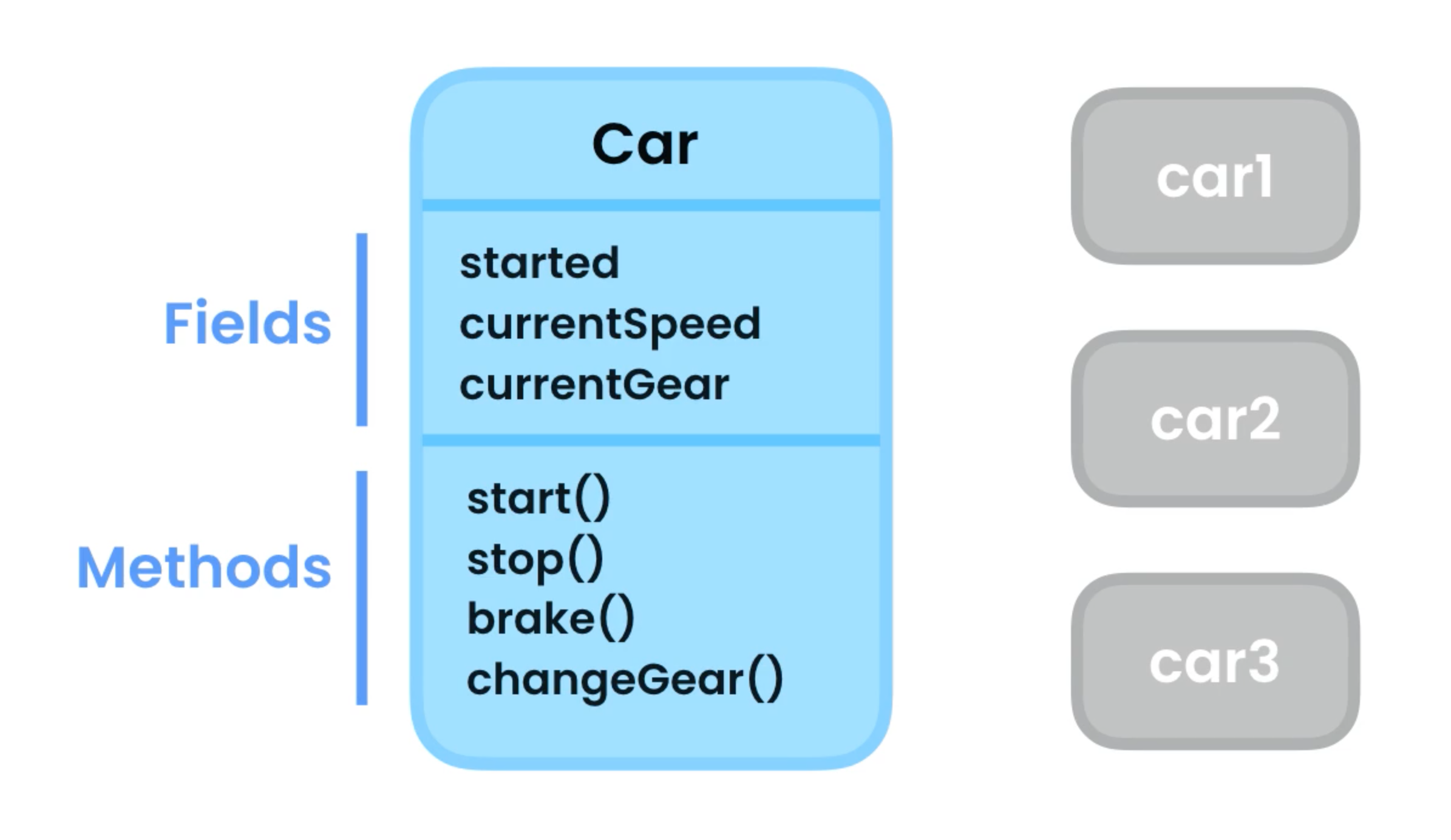

Class
- A blueprint/template for creating objects
Object
- An instance of a class

Methods can change the value of fields
Different car instances have different states
- They are independent objects stored in different locations of memory
Example: create the TextBox class

public class TextBox {
  // declare field
  // should initialize the field to avoid null pointer exception
  public String text = "";

  public void setText(String text) {
    this.text = text;
  }

  public void clear() {
    // don't need to use 'this'
    text = "";
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14

Example: create TextBox objects

public class Main {
    public static void main(String[] args) {
        // use 'var' to replace 'TextBox'
        var textBox1 = new TextBox();
        textBox1.setText("Box 1");
        System.out.println(textBox1.text.toLowerCase());

        // they are completely independent of each other
        var textBox2 = new TextBox();
        textBox2.setText("Box 2");
        System.out.println(textBox2.text.toUpperCase());
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

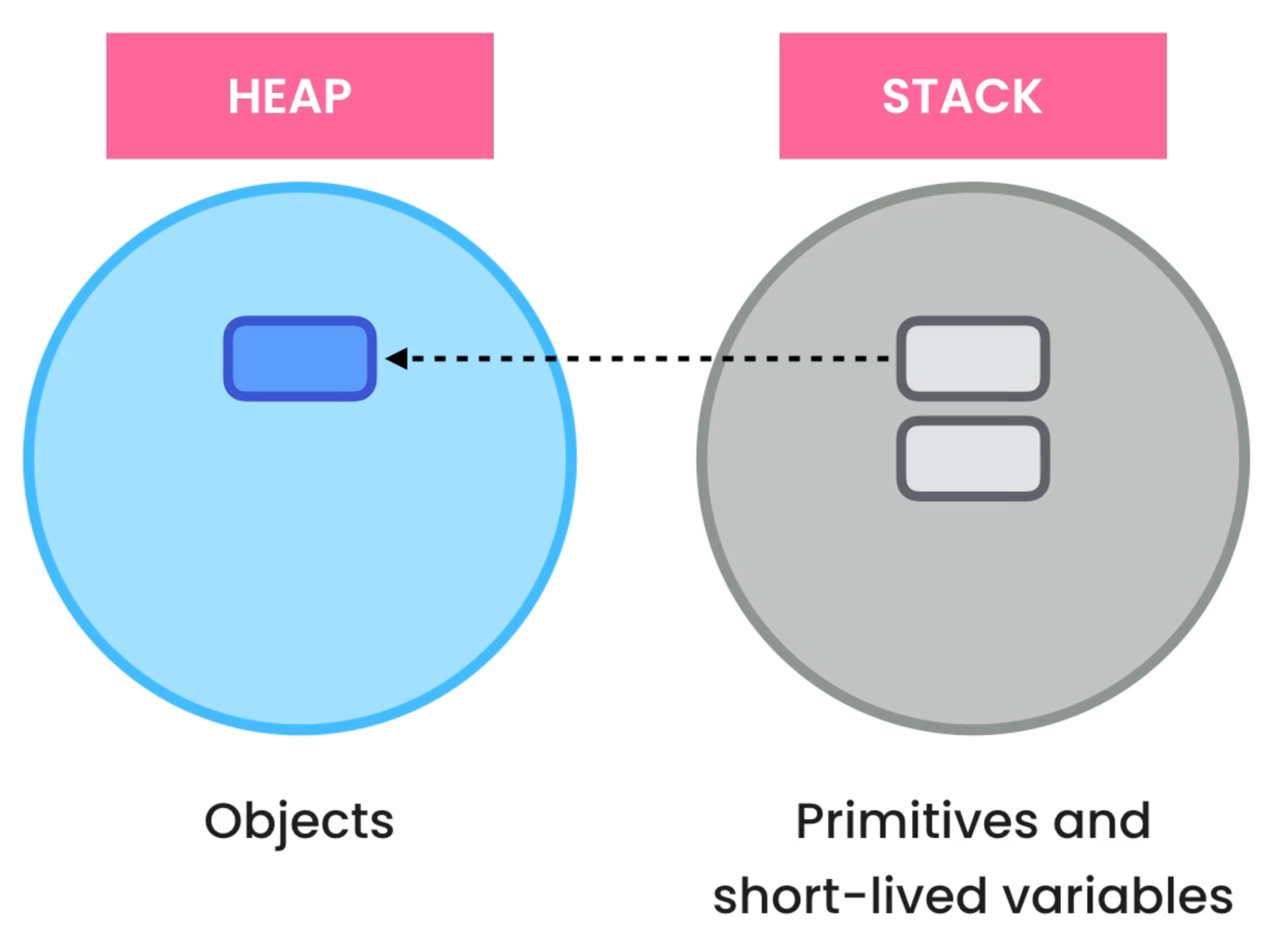

# Memory Allocation

Heap store objects
Stack store primitives short-lived variables (store references to objects on the heap)

public class Main {

    public static void main(String[] args) {
        // the newly created object is stored on the heap;
        // the address of the text object is stored on the stack; so 'textBox1' is a reference type
        var textBox1 = new TextBox();
        var textBox2 = textBox1; // reference the same TextBox object
        textBox2.setText("Box 2");
        System.out.println(textBox1.text); // get "Box 2"
    }
}

1
2
3
4
5
6
7
8
9
10
11

All memory on the stack will be immediately removed after finishing executing the main function
That is, memory deallocation is automatically handled by Java
Garbage collector will remove unused objects on the heap

# Encapsulation

Bundle the data and methods that operate on the data in a single unit

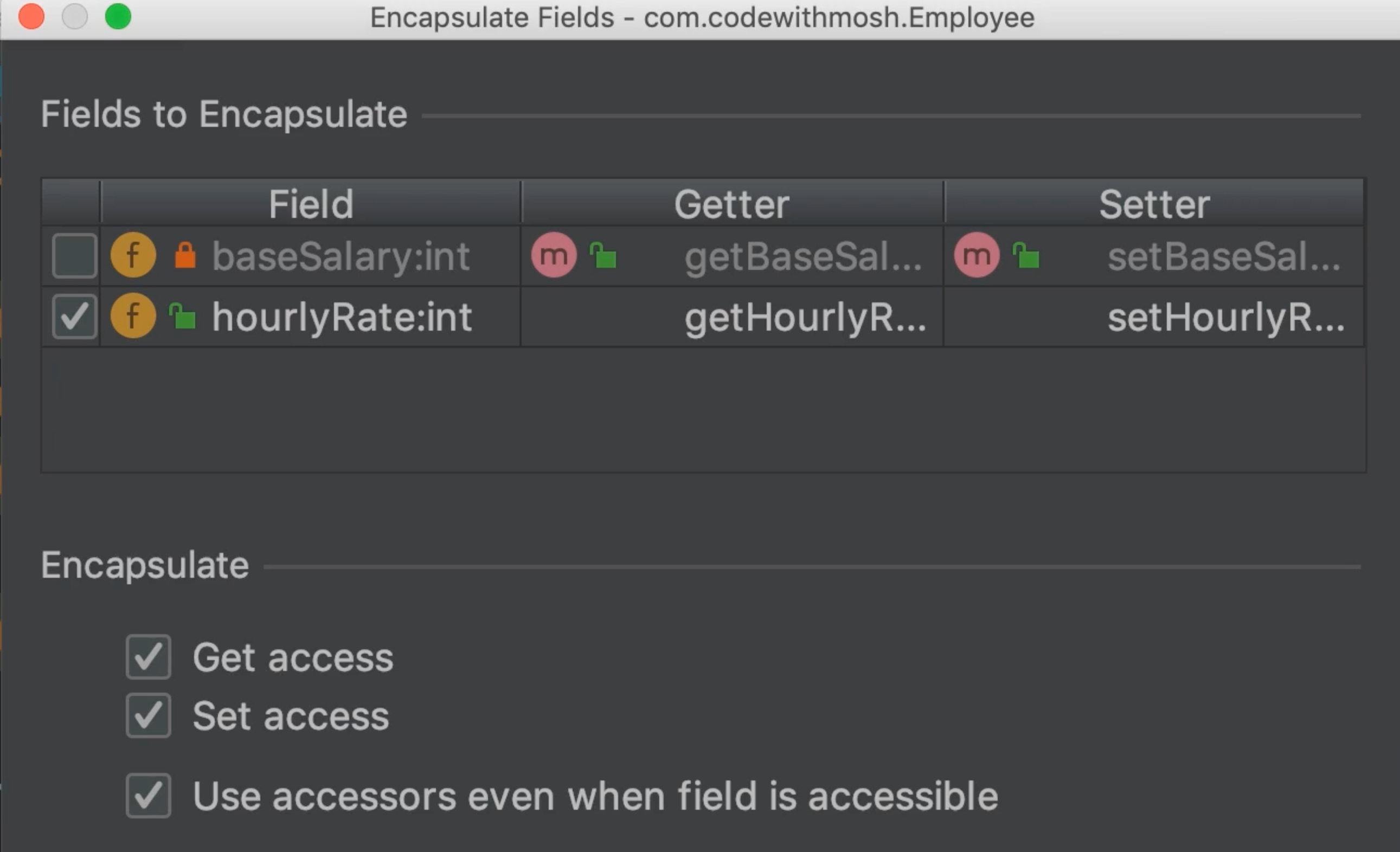

By clicking the lightbulb, IntelliJ can help to create getters and setters

# Abstraction

Reduce complexity by hiding unnecessary details
- Hide the implementation details of a class and treat it as a black box
- Have a simple interface to work with

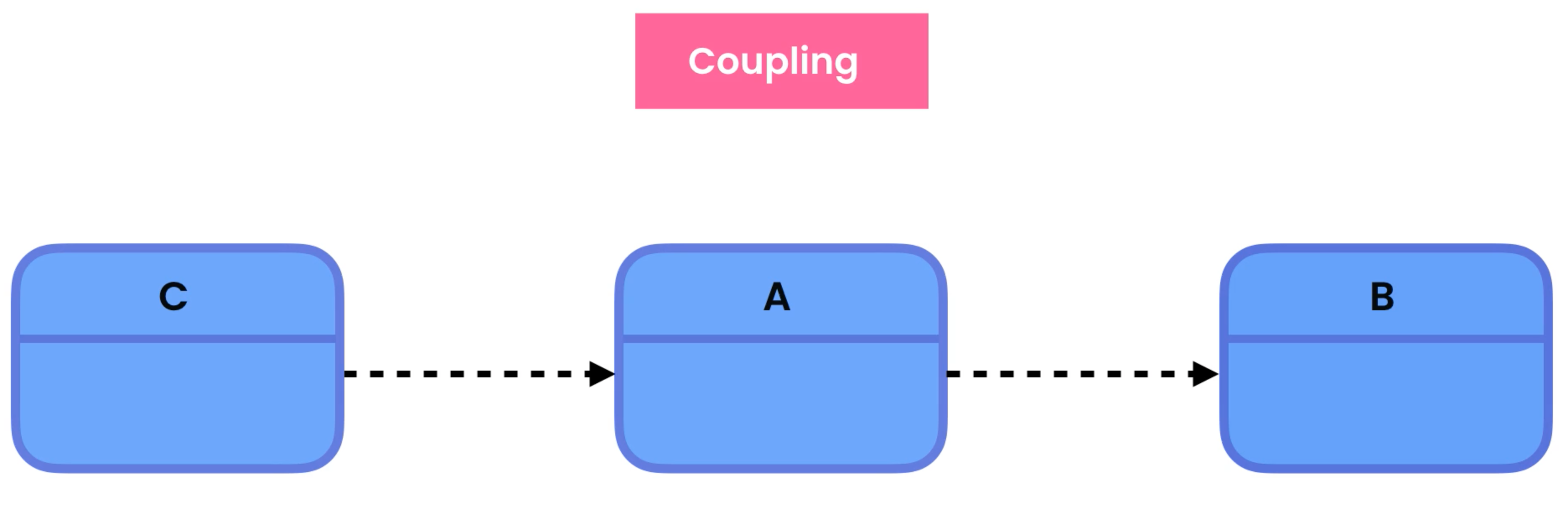

# Coupling

The level of dependency among classes
The more classes are coupled to each other, the more costly our changes are going to be
By reducing the coupling, we can reduce the impact of changes
- Reduce coupling points by reducing the number of unnecessary getter & setter functions

public class Browser {
  // only navigate is public
  public void navigate(String address) {
    String ip = findIpAddress(address);
    String html = sendHttpRequest(ip);
    System.out.println(html);
  }

  // hide from other classes, only used internally
  private String sendHttpRequest(String ip) {
    return "<html></html>";
  }

  // hide from other classes, only used internally
  private String findIpAddress(String address) {
    return "127.0.0.1";
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

By abstracting away complex internal implementation, we have reduced coupling among classes

# Constructor

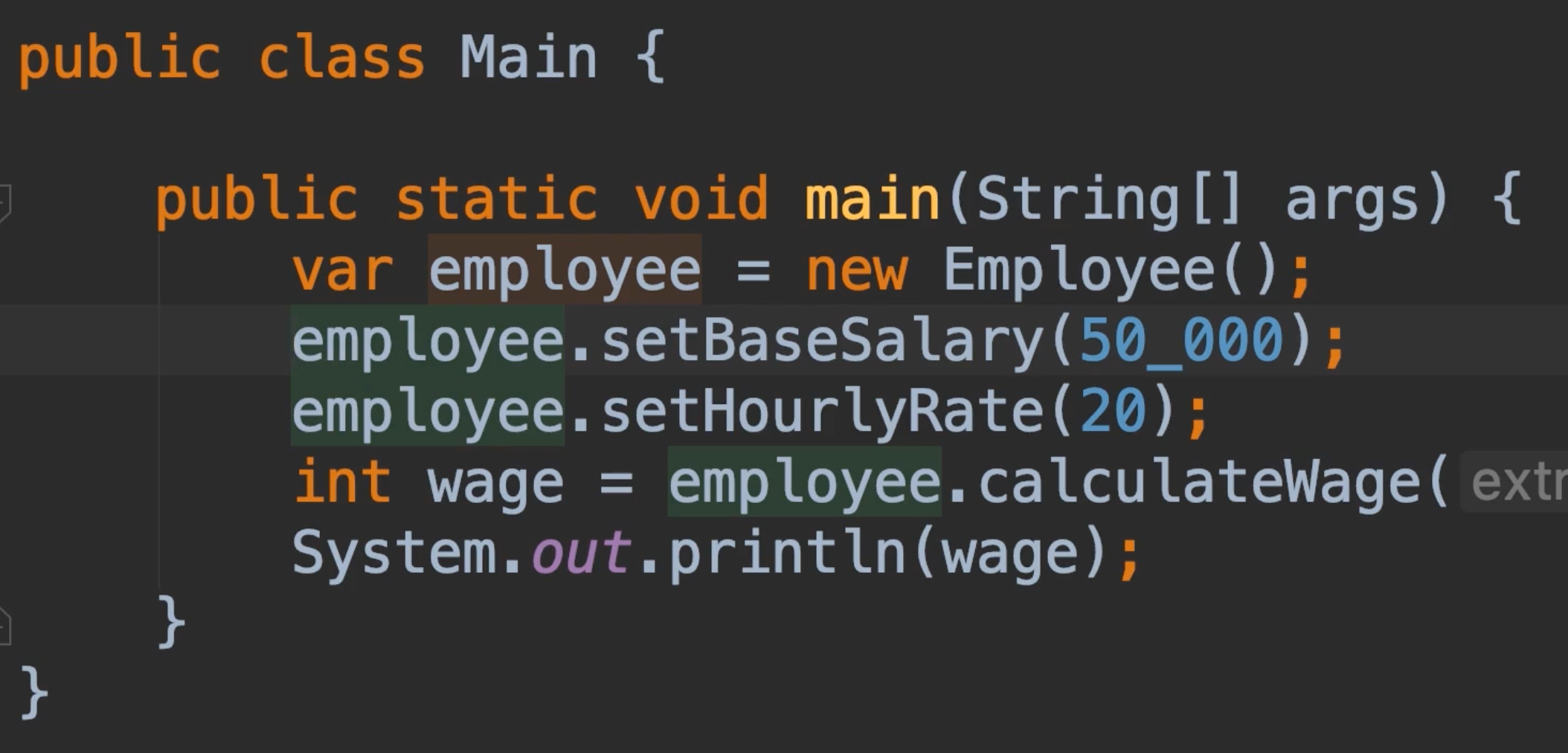

This is wrong:

All necessary parameters should be set when creating the object

// A Constructor method
public Employee(int baseSalary, int hourlyRate) {
    setBaseSalary(baseSalary); // data validation
    setHourlyRate(hourlyRate); // data validation
    numberOfEmployees++;
}

// In so doing, the main class looks like this:
public static void main (String[] args) {
    var employee = new Employee(50_000, 20);
}

1
2
3
4
5
6
7
8
9
10
11

# Method Overloading

public int calculateWage(int extraHours) {
    return baseSalary + (getHourlyRate() * extraHours);
}

public double calculateWage(double extraHours) {
    return baseSalary + (getHourlyRate() * extraHours);
}

1
2
3
4
5
6
7

# Constructor Overloading

public Employee(int baseSalary) {
    // reference to the method down below
    this(baseSalary, 0);
}

public Employee(int baseSalary, int hourlyRate) {
    setBaseSalary(baseSalary);
    setHourlyRate(hourlyRate);
    numberOfEmployees++;
}

1
2
3
4
5
6
7
8
9
10

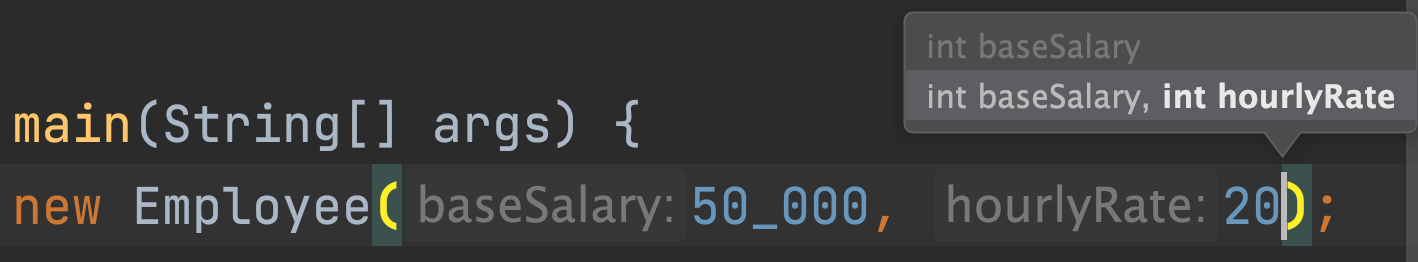

Use Command + P to see different constructors

# Static Members

A class can have two types of members
- Instance members
  - Belong to instances or objects
  - Instance members like variables can be accessed by using dot operator
- Static members (Class members)
  - The fields and methods that belong to a class, not an object
    - Static methods can only use static variables
    - It cannot use instance members because they belong to instances
  - Independent of objects
  - Cannot be accessed by using dot operator on an object
  - Represent a concept that should be in a single place
    - This concept does not belong to any individual employee
  - The main method is static because Java runtime is able to directly call this method without having to create a new object
    - Therefore, if a class is not expected used as a blueprint to create multiple instances, it should be static

// Instance Variable
var employee = new Employee();
employee.name = "Scott";

// Static Variable
employee.numberOfEmployees = 100; // ❌ doesn't work, inaccessible
System.out.println(Employee.numberOfEmployees); // ✅ works

1
2
3
4
5
6
7

# Q & A

What is the difference between a class and an object?
- A class is a blueprint or template for creating objects.
- An object is an instance of a class.
What does instantiating mean?
- Instantiating means creating an instance of a class: new Customer()
What is the difference between stack and heap memory? How are they managed?
- Stack is used for storing primitive types (numbers, boolean and character) and variables that store references to objects in the heap.
- Variables stored in the stack are immediately cleared when they go out of scope (eg when a method finishes execution).
- Objects stored in the heap get removed later on when they’re no longer references. This is done by Java’s garbage collector.
What are the problems of procedural code? How does object-oriented programming help solve these problems?
- Big classes with several unrelated methods focusing on different concerns and responsibilities.
- These methods often have several parameters.
- You often see the same group of parameters repeated across these methods.
- All you see is procedures calling each other passing arguments around.
- ==
- By applying object-oriented programming techniques, we extract these repetitive parameters and declare them as fields in our classes.
- Our classes will then encapsulate both the data and the operations on the data (methods).
- As a result, our methods will have fewer parameters and our code will be cleaner and more reusable.
What is encapsulation?
- Encapsulation is the first principle of object-oriented programming.
- It suggests that we should bundle the data and operations on the data inside a single unit (class).
Why should we declare fields as private?
- How we store data in an object is considered an implementation detail.
- We may change how we store the data internally.
- Plus, we don’t want our objects to go into a bad state (hold bad data).
- That’s why we should declare fields as private and provide getters and or setters only if required.
- These setters can ensure our objects don’t go into a bad state by validating the values that are passed to them.
What is abstraction?
- Abstraction is the second principle of object-oriented programming.
- It suggests that we should reduce complexity by hiding the unnecessary implementation details.
- As a metaphor, think of the remote control of your TV. All the complexity inside the remote control is hidden from you. It’s abstracted away. You just work with a simple interface to control your TV. We want our objects to be like our remote controls.
What is coupling?
- Coupling represents the level of dependency between software entities (eg classes).
- The more our classes are dependent on each other, the harder it is to change them.
- Changing one class may result in several cascading and breaking changes.
How does the abstraction principle help reduce coupling?
- By hiding the implementation details, we prevent other classes from getting affected when we change these details.
- For example, if the logic board and transistors inside a remote control change from one model to another, we’re not affected. We still use the same interface to work with our TV.
- Also, reducing these details and exposing fewer methods makes our classes easier to use.
- For example, remote controls with fewer buttons are easier to use.
What are constructors?
- Constructors are called when we instantiate our class.
- We use them to initialize our objects.
- Initialization means putting an object into an early or initial state (eg giving it initial values).
What is method overloading?
- Method overloading means declaring a method with the same name but with different signatures.
- The number, type and order of its parameters will be different.
What are static methods?
- Static methods are accessible via classes, not objects.
